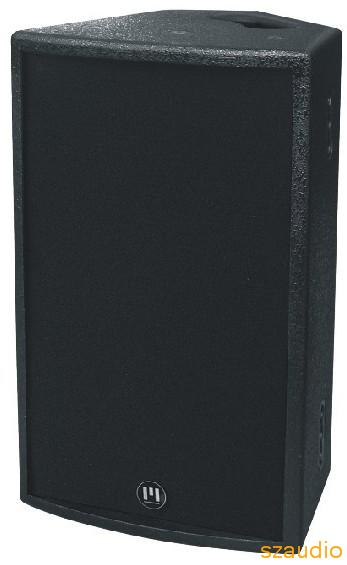

Compact passive trapezoidal 2-way speaker with a 10" LF driver and a 1.75" HF compression driver on a rotatable 90° x 75° Converging Elliptical Waveguide. Non-symmetrical trapezoidal shape allows use for front of house or floor monitor applications. Constructed from birch 18mm plywood encloser, finished in black textured paint with foam grille. Provision for optional flying points. Pole mount socket and Speakon NL4MP connectors.
Applications
Front of house
Floor monitor
Dry hire and rental
Theatre
Audio-visual
House of worship
Corporate / industrial
Features
Rotatable HF wavequide
Integral fly points
High power handling
Pole mount socket
Birch 18mm plywood encloser construction
Specifications
System configuration two-way full range
LF Subsystem 1 X 10 "
HF Subsystem 1.75" HF
Power rating (RMS/PROG/PEAK) 350 / 700 / 1400
Norminal Coverage Angle(H X V) / ±6db 90 X 75
Dimensions inch (H X W X D) 20.7 x 12.5 x 10
Dimensions mm (H X W X D) 525 x 319 x 253
PERFORMANCE Frequency Response ±3dB 70Hz~19KHz
(1W@1m) -10dB 45Hz~20KHz
Axial Sensitivity Full Range 97
(dB SPL,1W@1m)
Impedance Full Range 8
(Ohms)
Power Handling Full Range 350 / 700 / 1400
RMS/PROGRAM/PEAK LF 350 / 700 / 1400
HF 120 / 240 / 480
Calculated Maximum LF MAX 128
Output HF MAX 130
(dB SPL @1m) LF Long Term 122
HF Long Term 124
Nominal Coverage Angle Horizontal 90
/-6 dB points(Degrees) Vertical 75
PHYSICAL System configuration Two-way full range
Powering Passive(Crossover inside)
LF subsystem 1 × 10”
HF subsystem 1” throut / Ferrofluid oil coolant
1.75”voice coil/HF system over current protection
Enclosure Materials Birch 18mm plywood
Finish/color Water resistant/ Dark black
Connectors 2 x Neutrik NL4 Speakon
Hardware Top : 2 fly point
Side : 3 hole fly track x 2
Rear :2 fly point
Bottom : 3 fly point, pole mount cup
Grille Power coated perforated
steel, foam backed
Dimension Height 20.67” 525mm
Width(front) 12.56” 319mm
Depth 11.85” 301mm
产品规格
系统配置两路全频
低频子系统1× 10“
高频子系统1.75“高频
额定功率（有效值/编/峰值）350/一千四百分之七百
标称覆盖角度（高x五）/ ±6dB的90 ×75
尺寸英寸（高x宽x深）20.7× 12.5× 10
尺寸mm（高x宽x深）525 x319 x253
效能频率响应70Hz时?19KHz± 3dB的
（1瓦@1米）-10dB的45Hz?20kHz的
轴向灵敏度全范围97
（分贝声压级，1瓦@1米）
阻抗全范围8
（欧姆）
功率处理全范围350/一千四分之七百
有效值/方案/峰值低频350/1400分之700
高频120/四百八分之二百四十〇
计算得到的最大低频最大128
高频输出最大130
（分贝声压级@1米）低频长期122
长期高频124
标称覆盖角度水平90
/ -6 dB点（度）垂直75
物理系统配置两路全频
供电无源（交叉内）
低频子系统1×10“
高频子系统1“throut/磁液冷却液油
1.75“音圈/高频系统过电流保护
18毫米桦木胶合板密封材料
完成/彩色防水/暗黑色
2个连接器的Neutrik NL4的Speakon
硬件上：2飞点
方：3孔× 2苍蝇
背面：2飞点
下图：3飞点，极点芒杯
涂穿孔格栅电源
钢材，泡沫支持
维高20.67“五百二十五毫米
宽度（前）12.56“三一九毫米
深度11.85“三○一毫米
