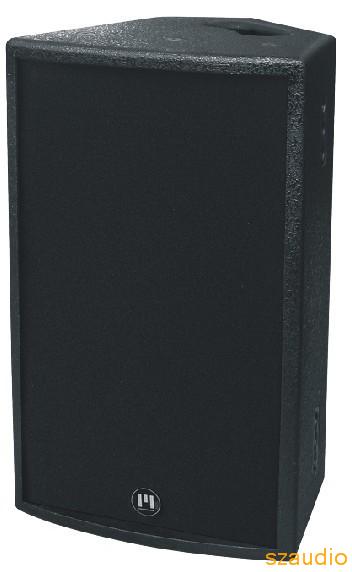

Compact full range 2-way speaker with a 8" LF driver and a 1.4" HF compression driver on a rotatable 90° x 75° Converging Elliptical Waveguide. Constructed from birch 18mm plywood encloser, finished in black textured paint with reticulated foam grille. Internal rigging points. Pole mount socket and Neutrik Speakon signal connectors.
Applications
Front of house
Floor monitor
Dry hire and rental
Theatre
Audio-visual
House of worship
Corporate / industrial
Features
Rotatable HF wavequide
Integral fly points
High power handling
Pole mount socket
Birch 15mm plywood encloser construction
Specifications
System configuration two-way full range
LF Subsystem 1 X 8 "
HF Subsystem 1.4" HF
Power rating (RMS/PROG/PEAK) 200 / 400 / 800
Norminal Coverage Angle(H X V) / ±6db 90 X 75
Dimensions inch (H X W X D) 18.3 x 10.6 x 8
Dimensions mm (H X W X D) 474 x 270 x 208
PERFORMANCE Frequency Response ±3dB 90Hz~21KHz
(1W@1m) -10dB 60Hz~23KHz
Axial Sensitivity Full Range 97
(dB SPL,1W@1m)
Impedance Full Range 8
(Ohms)
Power Handling Full Range 200 / 400 / 800
RMS/PROGRAM/PEAK LF 200 / 400 / 800
HF 80 / 120 / 240
Calculated Maximum LF MAX 124.5
Output HF MAX 127
(dB SPL @1m) LF Long Term 118.5
HF Long Term 121
Nominal Coverage Angle Horizontal 100
/-6 dB points(Degrees) Vertical 55
PHYSICAL System configuration Two-way full range
Powering Passive(Crossover inside)
LF subsystem 1 × 8”
HF subsystem 1” throut / Ferrofluid oil coolant
1.4”voice coil/HF system over current protection
Enclosure Materials Birch 15mm plywood
Finish/color Water resistant/ black/white
Connectors 2 x Neutrik NL4 Speakon
Hardware Top : 2 fly point
Side : 3 hole fly track x 2
Rear1 :2 fly point
Rear2 :2 fly point
Bottom : 3 fly point
Grille Power coated perforated
steel, foam backed
Dimension Height 18.67” 474mm
Width 10.63” 270mm
Depth 10.27” 260mm
产品规格
系统配置两路全频
低频子系统1× 8“
高频子系统1.4“高频
额定功率（有效值/编/峰值）200 /800分之400
标称覆盖角度（高x五）/ ±6dB的90 ×75
尺寸英寸（高x宽x深）18.3 X的10.6× 8
尺寸mm（高x宽x深）474× 270 ×208
效能频率响应90Hz?21KHz±3dB的
（1瓦@1米）-10dB的60赫兹?23KHz
轴向灵敏度全范围97
（分贝声压级，1瓦@1米）
阻抗全范围8
（欧姆）
功率处理的完整范围200/800分之400
有效值/方案/峰值低频200/八百分之四百
高频80/二百四分之一百二十〇
计算得到的最大低频最大124.5
高频输出最大127
（分贝声压级@1米）低频长期118.5
长期高频121
标称覆盖角度水平100
/ -6 dB点（度）垂直55
物理系统配置两路全频
供电无源（交叉内）
低频子系统1×8“
高频子系统1“throut/磁液冷却液油
1.4“音圈/高频系统过电流保护
桦木胶合板15mm的附件材料
完成/彩色防水/黑/白
2个连接器的Neutrik NL4的Speakon
硬件上：2飞点
方：3孔× 2
Rear1：2飞点
Rear2：2飞点
下图：3飞点
涂穿孔格栅电源
钢材，泡沫支持
维高18.67“四百七十四毫米
宽10.63“二七零毫米
深度10.27“260
